Road Sweeper Machines

Spread the love

SPEED ROAD SWEEPER

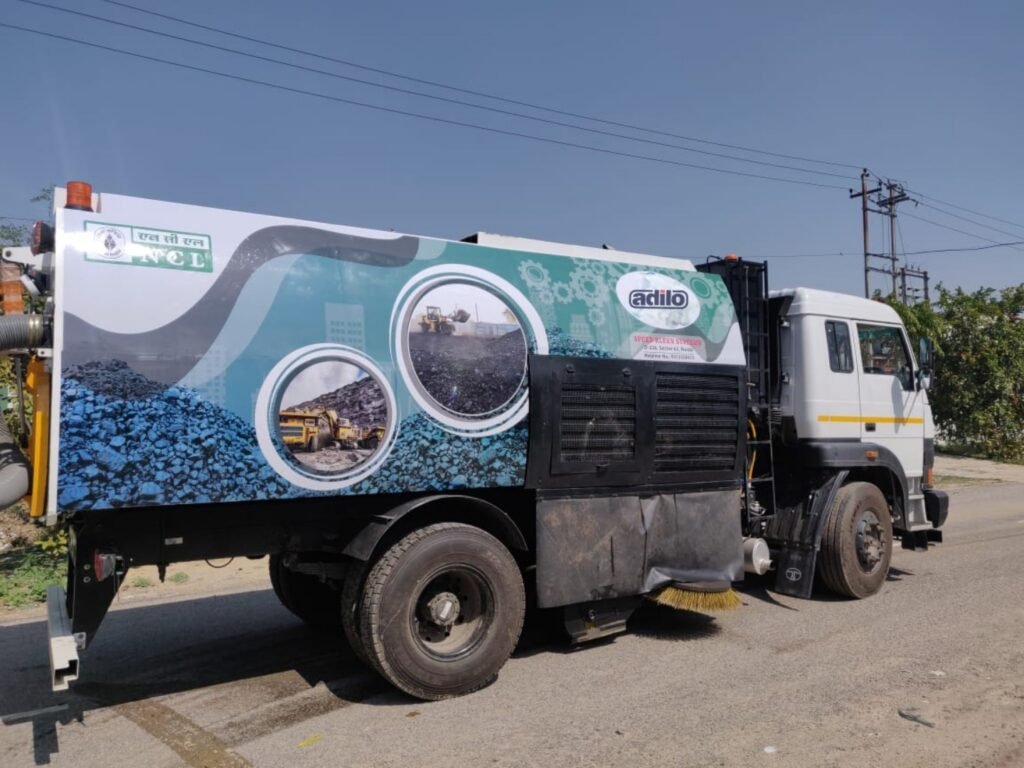

Road sweeping machine

Speed Kleen Systems makes production of Mechanical Driven Vacuum Road Sweeping Machines and Hydraulic Driven Vacuum Road sweeping machines with chamber capacity from 3 m³ up to 10 m³.

General Features:

  • High performance at lower Maintenance.
  • Fuel savings and more silent working environment.
  • It provides optional system reducing rotating speed of brush preventing unnecessary wear.
  • Engine- fan connection is made through torque convertor in our mechanical machines•
  • Thanks to user friendly control panel, operator learns using machines within a short time period.
  • Water tank mounted on base of waste tank at 10 degrees of angle provides ease for discharge operation of wastes.
  • Easily cleanable chamber inside grate design is developed; design of superstructure and equipments is made to minimize maintenance requirements
         TECHNICAL SPECIFICATIONS
FEATURE DATA
Sweeping Speed(km/h) 1-10
Sweeping Width (mm) 2150
Sweeping Capacity (m2/h) 21500
Hopper Tank Capacity (m3) 8
Water Tank Capacity (litter) 950
Hydraulic Oil Tank Capacity (ltr) 80
Machine Length (mm) 4700
Machine Width (mm) 2300
Machine Height (mm) 2040
Empty Total Weight (kg) 4800
Discharge Height (mm) 55
Side Brush Diameter (mm) 400
Middle Brush Diameter (mm) 400
Middle Brush Length (mm) 1240
Number of water Nozzle 23
Rear Suction Hose Diameter (mm) 150
Rear Suction Hose Length (mm) 5000
Auxiliary Engine Type Diesel
Auxiliary Engine Power (kw) 75
Fan Drive Type Mechanical
Side Suction Hose Diameter (mm) 220
Minimum Gross Weight (kg) 18000
Wheel Base (mm) 3800-4100
Rear Door Opening Angle 85
Mesh Filter Surface Area (m2) 1,09
Front Washing System Optional
Dual Suction System Optional
High Pressure Washing System Optional
Additional Filter System Optional
